Customer Success Story: Creating Temporary High-Volume Loading Docks for a Global Data Center Expansion
When a leading global data center corporation needed six fully-functional loading docks for a temporary AI infrastructure facility, Industrial Toolz designed and installed a custom-engineered solution in just six weeks.
Summary
Client: Prominent National Equipment Rental Provider
End User: Leading Global Data Center Corporation
Industry: Data Center Construction & AI Infrastructure
Scope: Six custom loading docks, comprehensive dock safety systems, environmental protection, and complete installation
Timeline: 6 Weeks
The Challenge: Temporary Data Center Building Needs Custom Loading Docks
The race to build AI infrastructure isn’t slowing down anytime soon, and any company building data centers is operating at a non-stop, 24/7 pace.
For one Leading Global Data Center Corporation, waiting for permanent data center construction to be complete just wasn’t an option—they had to put their GPUs to work immediately.
As the recent XAI multi-billion dollar compute deal with Anthropic demonstrates, if you have the GPUs in hand but you’re not powering them up, you’re losing tens of millions of dollars in token sales each day.
For our Data Center Corporation, it was a no-brainer that while the permanent buildings were being constructed, a temporary building would be quickly constructed to immediately house servers so they could be powered up ASAP.
The challenge was actually getting racks of processors into this temporary building.

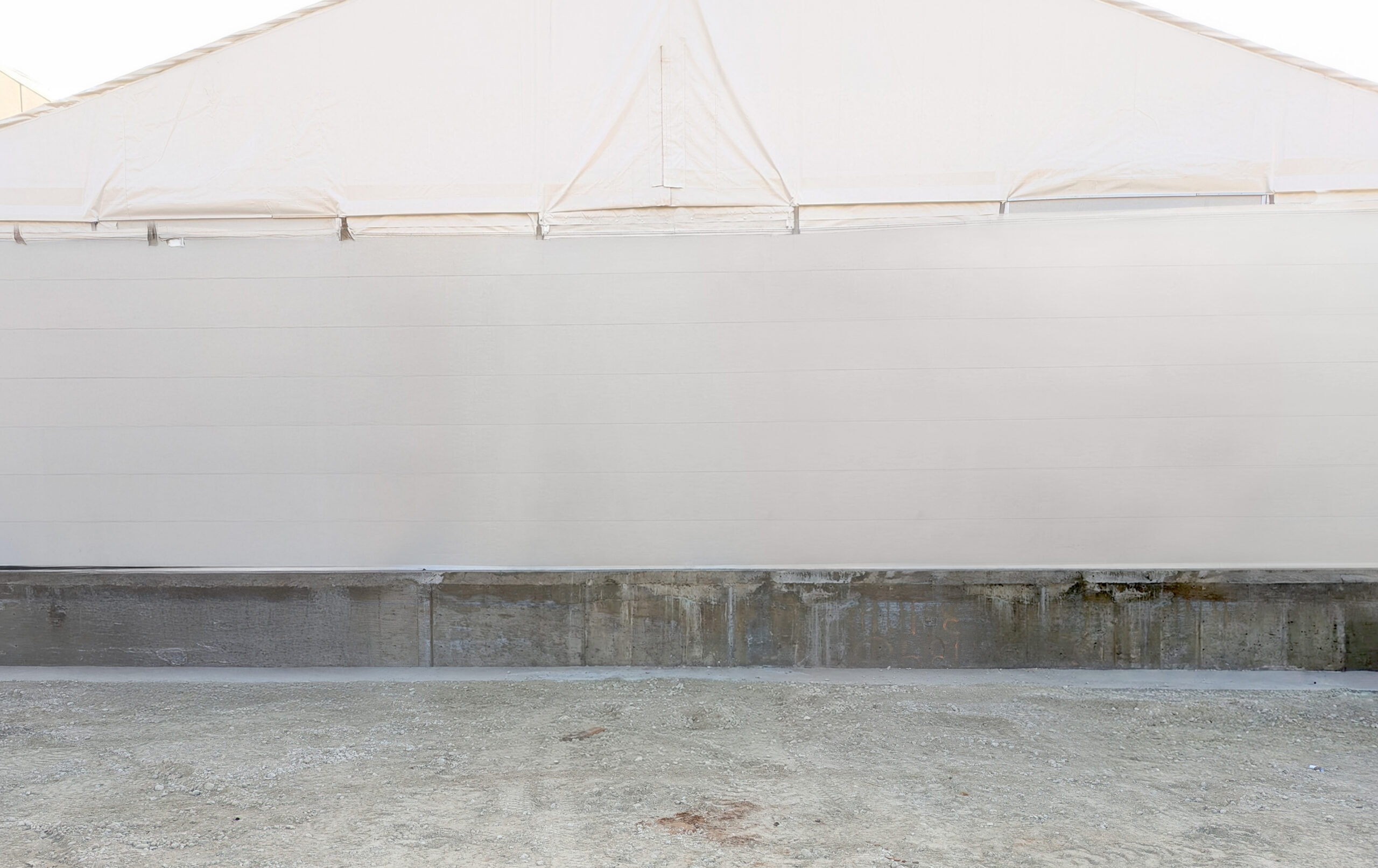

This temporary structure was built specifically without loading docks because once the racks of GPUs, networking, and cooling equipment were brought into the building, there would be no need for doors that could allow outside elements into a temperature and humidity-controlled environment. However, the temporary building still needed to accommodate the dozens of inbound trucks arriving daily with server racks and other highly sensitive equipment to fill the building.
The project required a solution that could function at a more precise level than a typical loading dock while remaining completely temporary and removable.
Plus, the solution also needed to be designed, fabricated, and installed in just six weeks.
That’s when a Prominent National Equipment Rental Provider working with the Data Center Corporation turned to Industrial Toolz.
Why This Project Was Different
While most custom material handling projects start with a permanent building designed to accommodate the transportation and movement of material, this temporary building was designed for the sole purpose of optimizing the environment for hundreds of millions of dollars of AI hardware. Essentially, Industrial Toolz needed to create six precise, fully functional loading docks from a concrete slab foundation where the temporary building was being constructed.
The end user wasn’t simply unloading pallets of construction materials that could be bounced around. They were moving pre-racked, sensitive server equipment that required protection from jostling, weather, sunlight, and environmental exposure. Safety requirements were stringent, timelines were aggressive, and because the facility was temporary, everything needed to be removable once the equipment was safely inside.
The project required:
- Six loading docks, three on each side of the temp building
- Safe truck restraint systems
- Weather-tight protection for sensitive server equipment
- Complete light control during unloading
- Smooth cart movement with no bumps or transitions
- A temporary rental design that could eventually be removed
- Fast-track design, fabrication, and installation
More importantly, the solution needed to account for dozens of subtle operational details that could impact efficiency, safety, or equipment protection.
Our team became involved during the planning and construction phases of the temporary facility, working directly with project stakeholders to determine exactly what would be required for a successful installation. We advised on concrete specifications, layout requirements, dock positioning, and structural considerations long before equipment arrived on site.
That’s exactly how Industrial Toolz approaches custom projects. We don’t simply provide equipment. We help engineer the entire project to deliver solutions that don’t just look good on paper but function seamlessly in the real world.
The Solution: A Fully Customized Temporary Loading Dock System

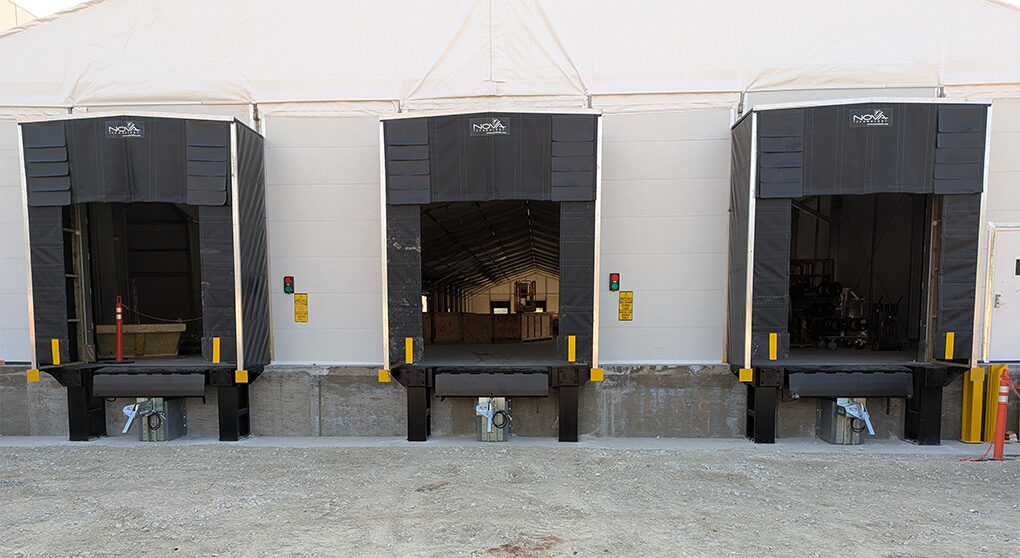

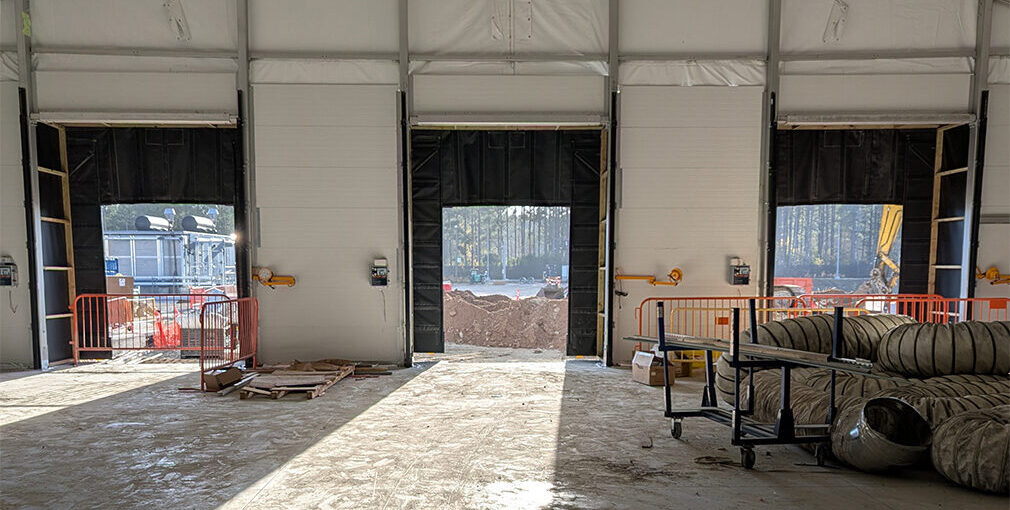

Industrial Toolz designed and delivered six temporary customized loading docks, three on each side of the facility, in just a six-week turnaround.
The system effectively extended a fully-functional loading dock from a concrete slab foundation, creating superior performance in a temporary structure.
Key Project Components:

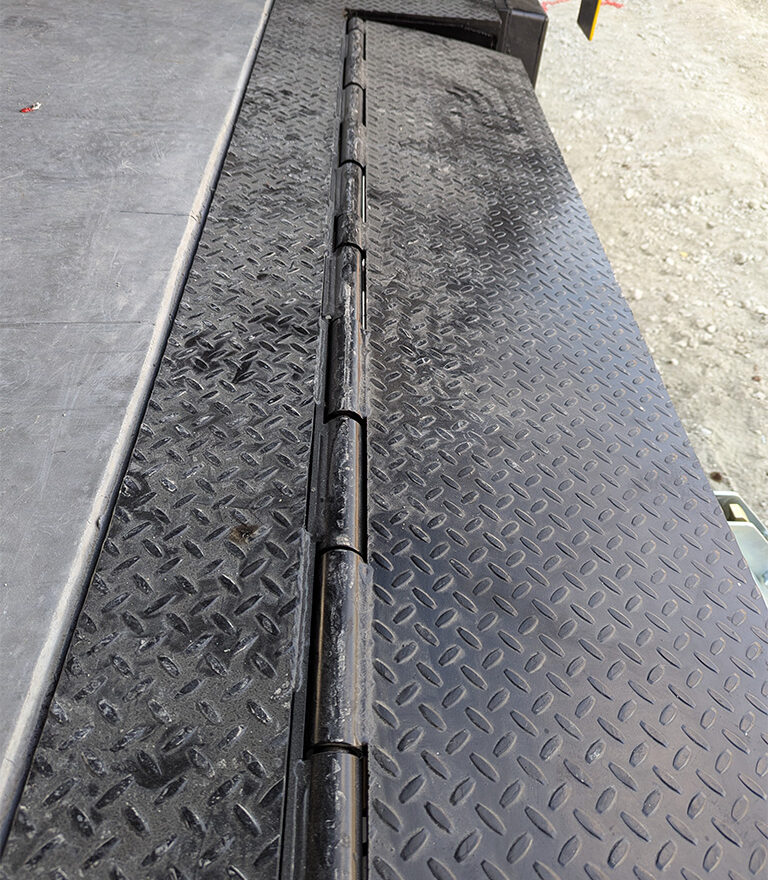

Custom Dock Leveling System
A custom dock leveler configuration created an exceptionally smooth transition between trailer and building floor. This was especially critical because server racks and equipment were being transported on carts with small wheels, and even small bumps or elevation changes could risk damaging the sensitive equipment.

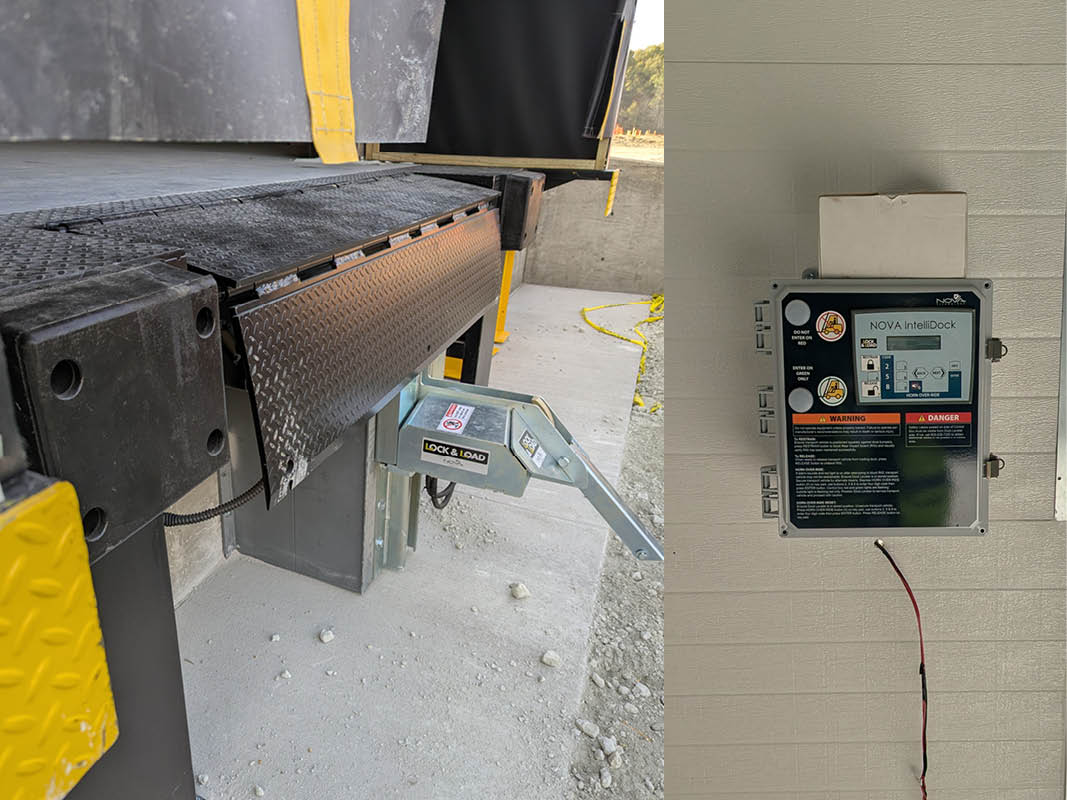

DockLock Safety System
Each dock incorporated an electronic dock lock approach bracket and restraint system that physically secured trailers during loading and unloading operations. Integrated red and green communication lights provided clear visual signals between drivers and dock personnel. Drivers immediately knew when trailers were safely secured and when they were cleared to depart. This eliminated trailer movement and significantly improved worker safety.

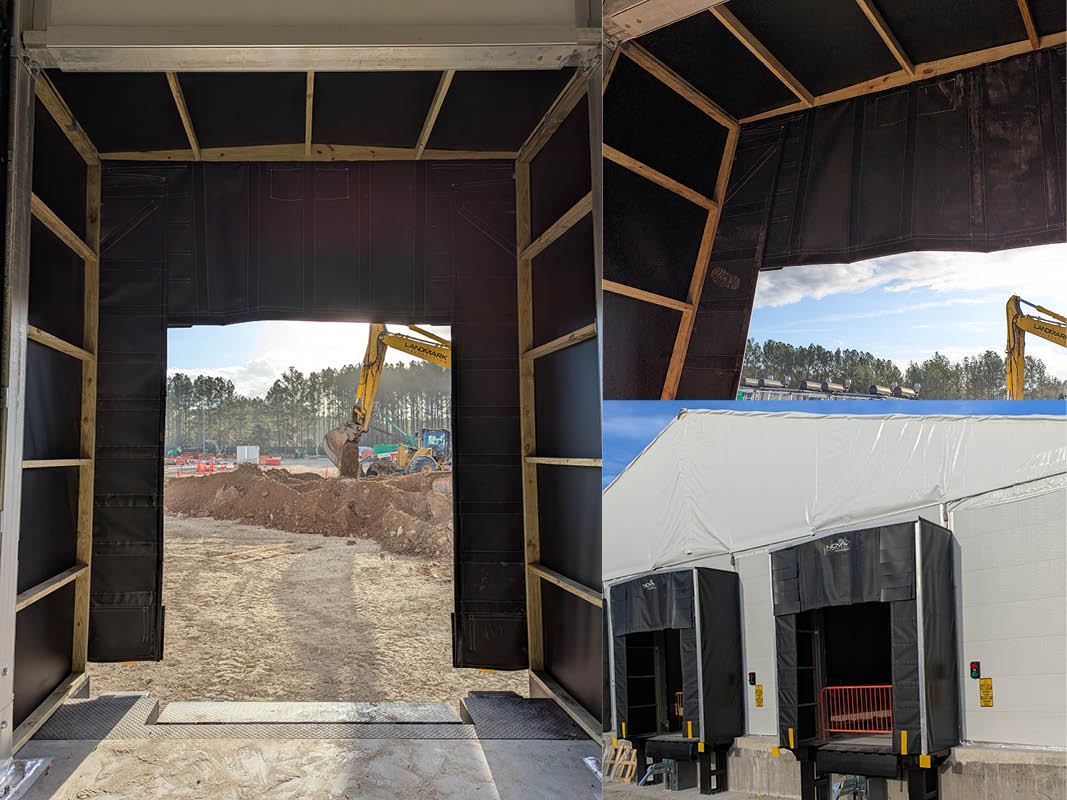

Custom Shroud System for Environmental Protection

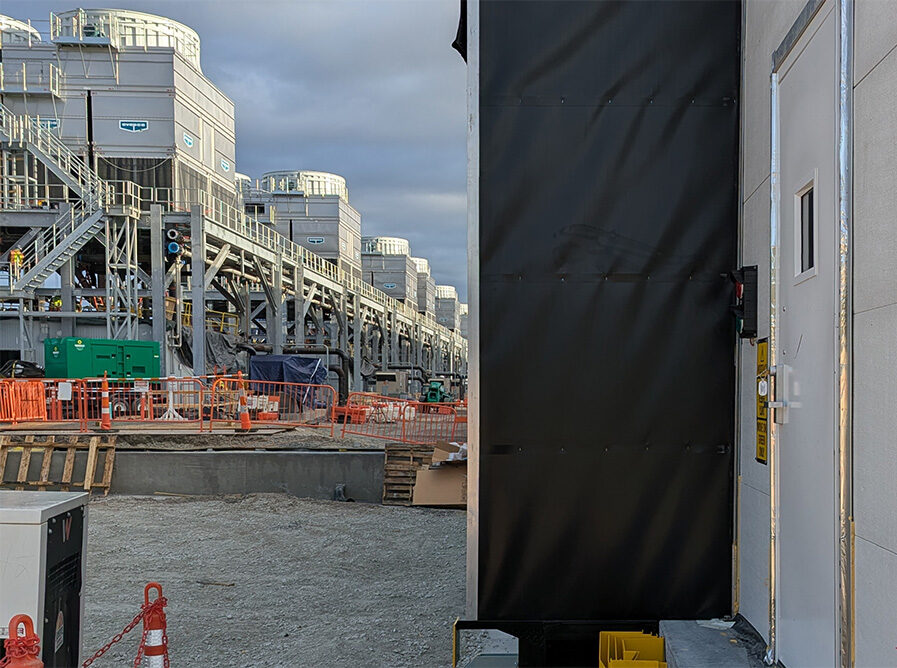

Because the equipment being unloaded was highly sensitive, weather protection was critical. Industrial Toolz designed and deployed a complete dock shelter system featuring protective side walls, heavy-duty curtains, and specialized shrouding around the dock opening. Together, these components shielded the highly sensitive equipment from rain, wind, debris, and light exposure during unloading operations.
Rental Deployment & Turnkey Project Management
Designed specifically for a temporary facility, the entire loading dock system was deployed as a rental solution. Industrial Toolz managed every phase of the project, from engineering and installation to future dismantling and removal once the permanent facilities are complete. This allowed the client to achieve permanent-level loading dock functionality without the cost or commitment of permanent infrastructure.
The Details Most Companies Miss
Custom projects are rarely defined by the big components. They’re defined by the dozens of small decisions that determine whether a solution only works on paper or if it works in the real world.
Throughout the project, the Industrial Toolz team identified and addressed countless operational details that could have been overlooked by a traditional equipment supplier.
- How would carts move from the trailer to the building without interruption?
- How would sensitive equipment remain protected during adverse weather?
- How would the dock equipment itself be protected from damage?
- How would trailer movement be prevented?
- How would drivers know when it was safe to move a trailer?
- How would the system eventually be installed and then removed when the permanent buildings came online?
Individually, these questions may seem minor, but collectively, they determine the success of the entire project.
The ability to recognize and solve these subtle challenges is what separates Industrial Toolz from other manufacturers.
Results: Permanent-Grade Material Handling Solutions in a Temporary Environment
In just six weeks, Industrial Toolz delivered six fully operational loading dock positions capable of supporting the demanding logistics requirements of a major data center project.
The temporary building functioned like a permanent facility, allowing equipment to move safely into the building while protecting the critical server infrastructure.
Most importantly, the project helped bring additional computing capacity online months sooner than would have been possible if the organization had waited for the permanent structures to be completed.
For the end user, that meant approximately six additional months of compute capability while permanent facilities continued construction. For Industrial Toolz, it was another example of what’s possible when custom engineering, problem-solving, and impeccable attention to detail come together.
Outcomes at a Glance:
Six Fully Functional Loading Docks Delivered in Six Weeks
Industrial Toolz successfully designed, fabricated, and installed six custom loading dock positions within an aggressive project schedule.
Accelerated AI Infrastructure Deployment
The temporary facility allowed the end user to bring additional computing capacity online approximately six months earlier than waiting for the permanent buildings alone.
Protected Sensitive Equipment
The enclosed dock design provided a controlled unloading environment for valuable server infrastructure.
Permanent-Level Performance in a Temporary Facility
Despite being a rental installation, the dock system delivered the functionality, safety, and efficiency expected from a permanent loading dock operation.
Ready for Removal When No Longer Needed
Once permanent facilities become operational, the temporary dock system can be removed without leaving behind unnecessary permanent infrastructure.
Why Do Companies Choose Industrial Toolz for Their Material Handling Challenges?
Not every project has a solution that already exists in a catalog. Some projects, like this one, require both custom engineering and accelerated timelines–something a standard manufacturer can’t provide.
This project demonstrates what Industrial Toolz does best: solving complex industrial access and loading challenges that fall outside the scope of standard equipment offerings. From temporary loading dock systems and access platforms to fully customized material handling solutions, our team works closely with customers to design systems that fit their operation, not the other way around.
When the project is unique, the timeline is tight, and the details are the difference between functional and mission-critical readiness, Industrial Toolz delivers solutions that manufacturers just simply can’t.
Industrial Toolz: We Do the Never Been Done Before
Bring us your complicated challenges and tight timelines, and we’ll answer with engineered solutions that perform under the demands of the real world, not just on paper.
